Rigid Vehicle Safety Tips & Blind Spots

Rigid vehicles are common in urban delivery, construction, waste management, and local freight. Despite their smaller turning radius compared to combinations, they have significant risks that require proactive management.

Height Awareness

• Many rigid vehicles (particularly curtain siders, pantechs, tippers, and crane trucks) exceed 3.8–4.3 metres when loaded or fitted with accessories (e.g. air-con units, tarps, cranes).

• Height can vary due to suspension changes, lift-axles, or loading.

Key Risk: Collisions with bridges, awnings, power lines, and underground carparks are common – especially in metro areas.

Driver Tip:


• Know and display your exact vehicle height in the cab.

• Avoid signed “low clearance” zones unless verified safe.

• Use up-to-date GPS routing systems with truck height settings.


Load Movement in Rigid Bodies - Rigid vehicles often carry:

• General freight (palletised or loose)

• Bulk loads (sand, waste, demolition material)

• Tooling and construction gear

Key Risks:


• Shifting loads under braking or cornering can affect stability and steering.

• Unrestrained or poorly restrained freight can break through curtain sides or tip the body on bends.

Mitigation Tips:


• Apply load restraint principles (NHVR guidelines 2025) - even for short trips.

• Use rated straps, gates, blocking, or tie rails.

• Never drive with partially unsecured or top-heavy loads.

• If carrying liquid tanks or bins, consider sloshing effects during braking.

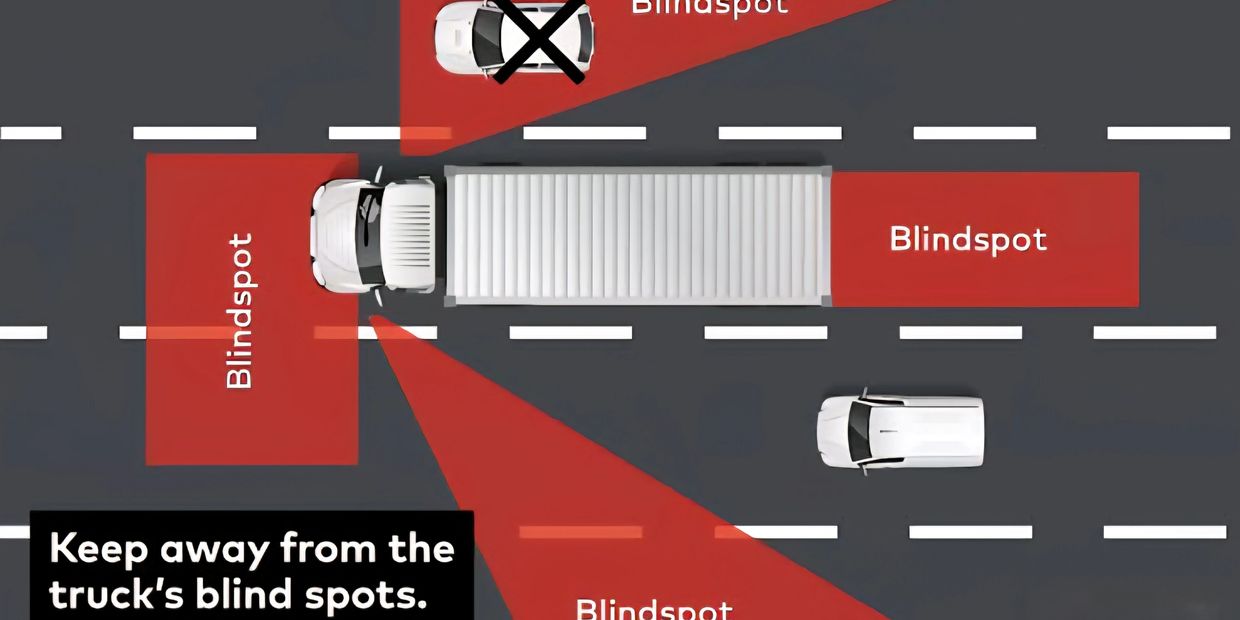

Blind Spot Awareness

Rigid vehicles may be shorter than articulated combinations but still have critical blind zones:

• Front: Up to 2 metres, particularly in bonneted or raised trucks.

• Sides: Larger blind spots on the passenger (near-side) due to mirrors and cabin position.

• Rear: There’s no natural rear visibility without cameras or spotters.

Urban Risk: Pedestrians, cyclists, and scooters can enter near-side blind spots at traffic lights and roundabouts.


Driver Tips:


• Conduct mirror checks every 8–10 seconds.

• Fit and use class V and VI mirrors for better coverage.

• Use reverse cameras or audible alarms—especially on delivery runs or construction sites.

• Never reverse blind. Use a spotter or get out and check.


Vehicle Dynamics – When Loaded Rigid vehicles:

• May have less stability than multi-axle trailers, particularly with tall or uneven loads.

• Are more prone to rollover on cambered roads or roundabouts when top-heavy (e.g. fridges, furniture, scaffold).

Tips:

• Corner slowly and keep a wide line to reduce body sway.

• Understand how weight distribution affects handling—especially in tippers or crane trucks.

• Use air suspension readings or onboard weight systems to avoid overloading.


Urban and Site-Specific Hazards: Rigid vehicles are often used in high-risk, tight-access environments:

• CBDs, loading docks, construction sites, and residential streets.

• Hazards include power lines, narrow driveways, parked cars, skip bins, and drive-over pits.

Under CoR, if the site isn’t safe, the driver has the legal right to refuse the delivery and escalate the risk.


Quick Reference: Rigid Vehicle Risk Checklist: Risk Area: Hazard: Safety Practice

• Height: Striking overhead structures: Know your height and avoid unsigned clearances
• Blind Spots: Pedestrian/cyclist collisions; Use mirrors, reverse cameras, and spotters
• Load Shift: Braking/turn instability: Restrain all loads to NHVR standard
• Stability: Rollovers on bends: Drive slowly with high/tall loads
• Urban Hazards: Tight turns, soft verges, overhanging branches: Plan routes and approach cautiously
• Site Safety: Power lines or confined spaces: Conduct a site assessment before entry

Regulatory Note

• Under National Heavy Vehicle Law, drivers, operators, and schedulers all share responsibility for ensuring that vehicles are loaded safely, within height/mass limits, and operated in a safe environment.

• Failure to address blind spots or shifting load risks can result in fines, demerit points, or prosecution under CoR laws.
